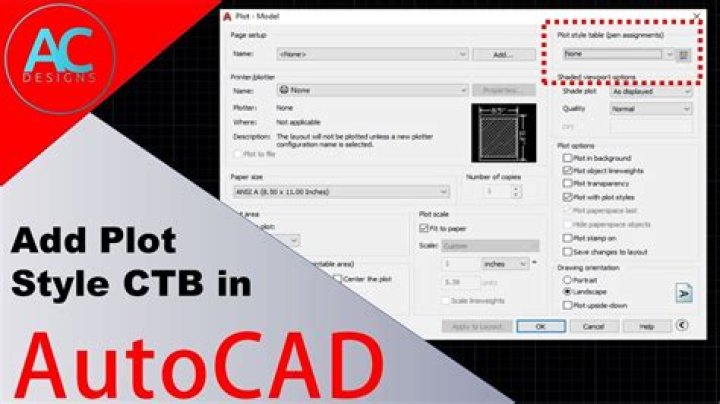

1) First of all, click on the “Application menu” and then click on the Print. 2) Select “Manage plot styles” from the options in the right-side panel. 3) After that, all plot styles will open. 4) Double click on the STB file in which you want to add plot style.

Where are CTB files located in AutoCAD 2014?

The folder location is typically: C:\Users\\AppData\Roaming\Autodesk\AutoCAD \\enu\Plotters\Plot Styles . macOS: in the Preferences dialog > Application > Printer Support File Path > Plot Style Table Search Path.

How do I use CTB instead of STB?

If you do not have an STB file to use yet, one of your CTB files may be copied and converted into an STB file. To do this, type CONVERTCTB at the AutoCAD 2000 command line. Select a CTB file to copy from, then specify a new file name for the STB file. The STB file will contain plot styles named Style 1, Style 2, etc.

How do I import a CTB file into AutoCAD 2021?

Open the Plot Style Table Editor with any of the following methods:

  1. Double-click a CTB or STB file in the Plot Style Manager.
  2. Right-click a CTB or STB file in the Plot Style Manager, and then choose Open from the shortcut menu.
  3. Choose Plot Style Table Editor from the Finish screen in the Add Plot Style Table wizard.

How do I export a CTB file from AutoCAD?

You could open it in autocad, go to table view, then do that Windows’ ctrl+c then ctrl-v thing (copy and paste).

How do I download a CTB file?

To download our CTB files, right-click the link below, select “Save As” or “Save Target” from the menu, and save it somewhere you can easily find it, such as your desktop. The zip file linked above will downoad to the location you selected. Double-click the downloaded zip file landfx_ctbs. zip to extract it.

Why CTB file is not showing up?

Expand the Printer Support File Path by clicking the plus (+) sign to the left. Expand the Plot Style Table Search Path in the same way. Check the folder path listed under Plot Style Table Search Path. If this path is not pointing to the folder where your office stores your CTB files, click on it to highlight it.

How do I open a CTB file?

Double-click a CTB or STB file in the Plot Style Manager. Right-click a CTB or STB file in the Plot Style Manager, and then choose Open from the shortcut menu.

How do I change CTB to STB in AutoCAD?

Solution:

  1. Use the CONVERTCTB command.
  2. Select any CTB related plot style and save it with at a desired file location.
  3. Use the CONVERTPSTYLES command.
  4. Confirm the Warning message to open the file selection dialog box.
  5. Navigate to the previously created STB, select it and confirm with Open.
