Convert a 3D object, such as a mass element or an AutoCAD ACIS solid, into a single-component wall.

  1. Select the object you want to convert to a wall.
  2. Click Mass Element tab Convert To panel Wall.
  3. Enter y (Yes) to erase the original object, or enter n (No) to retain the object.
  4. Specify the baseline of the wall:

How do I insert a background image in AutoCAD?

In the Properties panel, under General category, click the Background Override field and select Edit from the drop-down list. In the Background dialog box, click the Type drop-down list and select the type of background to assign to the view. Specify the options for the background. Click OK.

How do I create a Civil 3D assembly in AutoCAD?

Click Home tab >> Create Design panel >> Assembly drop-down >> Create Assembly . In the Create Assembly dialog box, for name, enter Primary Road Full Section. Click OK. When the ‘Specify assembly baseline location’ prompt is displayed on the command line, click in the rectangle under the profile views.

How do I open Civil 3D in AutoCAD?

Reload the c3d. cuix file

  1. On the command line in Civil 3D, type CUILOAD.
  2. Click the Browse button.
  3. Open the c3d. cuix file. The dialog window should automatically go to the correct folder, but if not, the path is C:\Users\\AppData\Roaming\Autodesk\C3D 20xx\enu\Support.
  4. Click the Load button and then click Close.

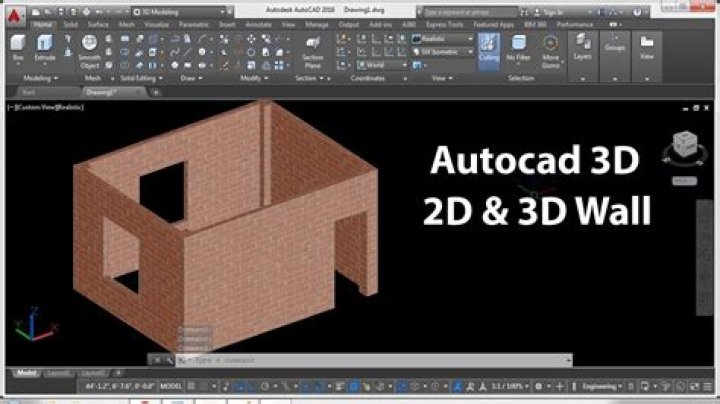

How do you make a 3D wall?

Follow these steps:

  1. Draw the 2D floor plan with lines or polylines. Use architectural units. You should be in the 3D Modeling workspace.
  2. Create a new layer for the walls and make it current.
  3. Set a view that will let you see the 3D walls. For example, display the View toolbar and choose SE Isometric.

How do you create a wall in AutoCAD?

On the command line, enter A for Arc. Specify the wall segment midpoint….

  1. Select a wall tool. Note: Alternatively, you can click Home tab Build panel Wall drop-down Wall. Find.
  2. Specify the wall segment start point.
  3. Press Ctrl to flip the wall segment orientation.
  4. Specify the wall segment endpoint.

How do I make transparency in AutoCAD?

Click the New Layer button and name the layer. In the Color column for that layer, click the color swatch and choose a color. Click in the Transparency column for that layer to open the Layer Transparency dialog box and type a value between 0 (completely opaque, the default) and 90 (mostly transparent). Then click OK.

How do I mirror a civil assembly in Civil 3D?

On the assembly, right-click on the BasicLane subassembly and click Mirror. The BasicLane subassembly is inserted on the left side of the assembly. Note that the Mirror option is only available for subassemblies that contain a Side parameter.

What is an assembly in Autocad Civil 3D?

Assembly objects contain and manage a collection of subassemblies that are used to form the basic structure of a 3D corridor model. Adding one or more subassembly objects, such as travel lanes, curbs, and side slopes, to an assembly baseline creates an assembly object.

Does AutoCAD Civil 3D include AutoCAD?

Software for 2D and 3D CAD. Subscription includes AutoCAD, specialized toolsets, and apps. Plan, design, construct, and manage buildings with powerful tools for Building Information Modeling.
