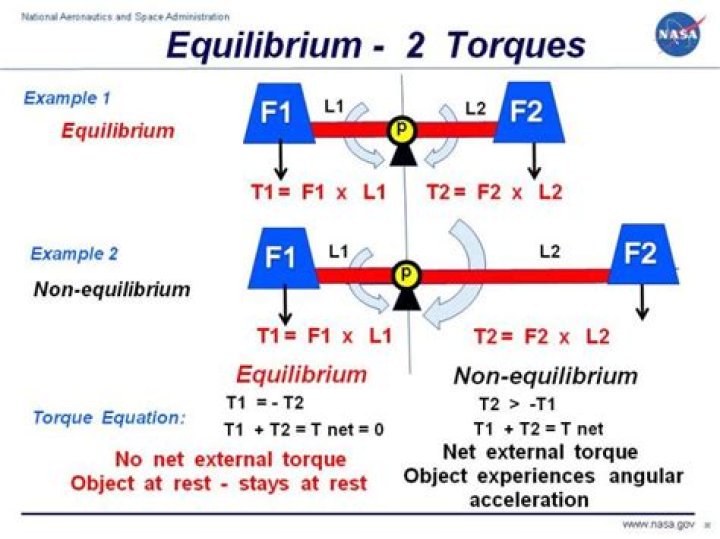

- A very basic concept when dealing with torques is the idea of equilibrium or balance. In general, an object can be acted on by several torques at the same time.
- T1 = – T2 If we sum up the torqes acting on the pivot p, we obtain the torque equation on the left:
- T1 + T2 = T net = 0.
- |T net| = |T1| – |T2|
How do you find the force of a torque problem?
The magnitude of a torque about a fixed axis is calculated by finding the lever arm to the point where the force is applied and using the relation |→τ|=r⊥F | τ → | = r ⊥ F , where r⊥ is the perpendicular distance from the axis to the line upon which the force vector lies.
What causes torque?
In physics terms, the torque exerted on an object depends on the force itself (its magnitude and direction) and where you exert the force. You go from the strictly linear idea of force as something that acts in a straight line (such as when you push a refrigerator up a ramp) to its angular counterpart, torque.
How does angle affect torque?
The magnitude of the torque depends on: Radius r: Increasing the radius increases the torque. Angle between the force and lever arm θ: Directing a force perpendicular to the lever arm increases the torque.
What happens when torque is zero?
If the net torque on a rotatable object is zero then it will be in rotational equilibrium and not able to acquire angular acceleration.
What force produces torque?
Definition and relation to angular momentum A particle is located at position r relative to its axis of rotation. When a force F is applied to the particle, only the perpendicular component F⊥ produces a torque.
What is the right hand rule for torque?
To use the right hand rule in torque problems, take your right hand and point it in the direction of the position vector (r or d), then turn your fingers in the direction of the force and your thumb will point toward the direction of the torque.
