The point geom is used to create scatterplots. The scatterplot is most useful for displaying the relationship between two continuous variables. A bubblechart is a scatterplot with a third variable mapped to the size of points.
How do you change the shape of a geom point?
You can change the number to plot different shapes, i.e. geom_point(shape = x) . If you want to change point shapes based on a grouping variable, then first set the shape with the grouping variable in geom_point and then use scale_shape_manual to choose the desired shapes (optional).
What is Geom in R?
A ggplot2 geom tells the plot how you want to display your data in R. A geom defines the layout of a ggplot2 layer. For example, you can use geoms to create bar charts, scatterplots, and line diagrams (as well as a variety of other plots), as you can see below.
What is Alpha in Geom_point?
Alpha refers to the opacity of a geom. Values of alpha range from 0 to 1, with lower values corresponding to more transparent colors.
What is Geom smooth in R?
Source: R/geom-smooth.r , R/stat-smooth.r. geom_smooth.Rd. Aids the eye in seeing patterns in the presence of overplotting. geom_smooth() and stat_smooth() are effectively aliases: they both use the same arguments. Use stat_smooth() if you want to display the results with a non-standard geom.
What is the default size for GEOM point?
0.5
For most geoms, the default size is 0.5. The size can be set to a constant value or it can be mapped via a scale.
Which of the following argument is used to set the point shapes in the plot () function?
pch
The graphical argument used to specify point shapes is pch.
What is GEOM layer?
Geoms. A layer combines data, aesthetic mapping, a geom (geometric object), a stat (statistical transformation), and a position adjustment. Typically, you will create layers using a geom_ function, overriding the default position and stat if needed.
What is Geom segment in ggplot2?
geom_segment() draws a straight line between points (x, y) and (xend, yend).

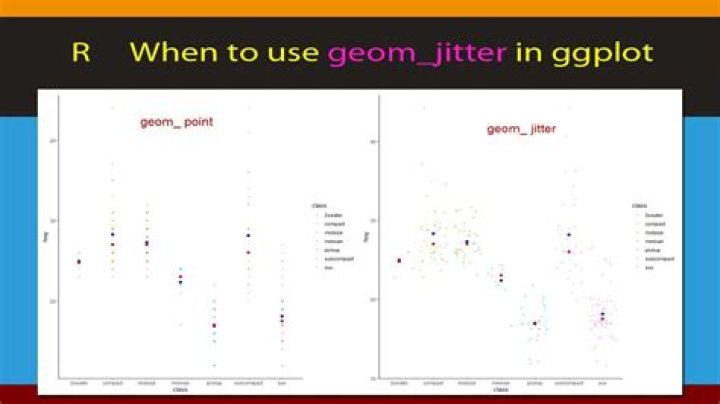

What is Geom jitter?
The jitter geom is a convenient shortcut for geom_point(position = “jitter”) . It adds a small amount of random variation to the location of each point, and is a useful way of handling overplotting caused by discreteness in smaller datasets.
What does Stat_smooth do in R?
stat_smooth: Add a smoother. Aids the eye in seeing patterns in the presence of overplotting.
What is a smoothing line?
A smoother line is a line that is fitted to the data that helps you explore the potential relationships between two variables without fitting a specific model, such as a regression line or a theoretical distribution.
What is the point Geom used for?
Source: R/geom-point.r. geom_point.Rd. The point geom is used to create scatterplots. The scatterplot is most useful for displaying the relationship between two continuous variables. It can be used to compare one continuous and one categorical variable, or two categorical variables, but a variation like geom_jitter () , geom_count (),
What is the difference between Point Geom and scatterplot?
The point geom is used to create scatterplots. The scatterplot is most useful for displaying the relationship between two continuous variables. It can be used to compare one continuous and one categorical variable, or two categorical variables, but a variation like geom_jitter () , geom_count (), or geom_bin2d () is usually more appropriate.
What is the difference between Geom_jitter() and bubblechart()?
It can be used to compare one continuous and one categorical variable, or two categorical variables, but a variation like geom_jitter () , geom_count (), or geom_bin2d () is usually more appropriate. A bubblechart is a scatterplot with a third variable mapped to the size of points.
