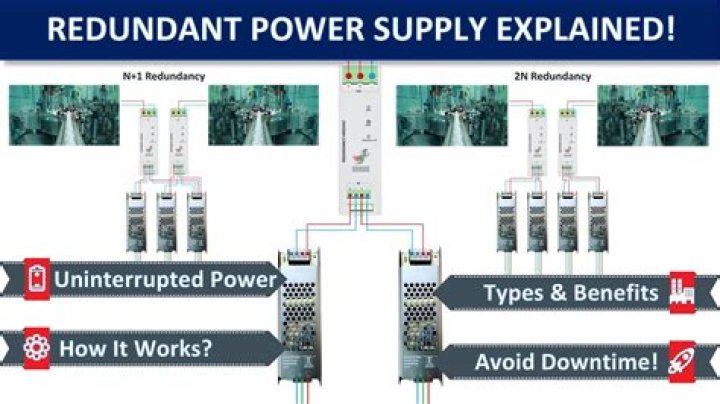

A redundant power supply is when a single piece of computer equipment operates using two or more physical power supplies. If one is powered off for some reason, the other one will immediately compensate to provide full power to the device so there is no downtime at all.
Can you put 2 power supplies in parallel?
Two or more power supplies being capable of CV/CC automatic cross over operation can be connected in parallel to obtain a total output current greater than that available from one power supply. The total output current is the sum of the output currents of the individual power supplies.
Do dual power supply servers increase redundancy?
Yes. Using separate building circuits to run your server’s dual power supplies gives you all the benefits of full-on redundancy.
What is redundant circuit?
Redundancy in a digital circuit means that the circuit can be simplified by removing at least one logic gate or gate input without affecting the function of the circuit [3, 85]. For combinational circuits, an undetectable stuck-at fault is also a redundant fault.
What is a redundant electrical circuit?
Redundant Circuit Pair means two identical power circuits installed in the same cabinet or rack, neither of which is a part of another pair of circuits in the same cabinet or rack.
How do you make a dual power supply circuit?
Constructing Dual Power Supply Circuit:
- Step-I: Converting 220v AC into 12v AC using Step Down Transformer.
- INPUT: 220V ac, 50 Hz.
- OUTPUT: Between outer terminal and middle terminal: 12V ac, 50 Hz.
- Step – II: Converting 12v AC into 12v DC using Full Bridge Rectifier.
- Here, full bridge rectifier is used.
- INPUT: 12V ac.
Can I use two power supplies?
Second PSUs can be used to distribute the load if a single unit cannot cope by itself and it is safe to do so as long as any rail is powered by at most one supply. E.g., you can use the second PSU to power the hard drives, but the hard drives must be disconnected from the first PSU.
What is circuit redundancy?
Why does server have two power supplies?
4 Answers. You have two power supplies for redundancy. Assuming they are hot-plug, if one fails you can replace it while the system is still running. You could also run to separate servers in your data center and connect each power supply to a separate circuit.
Do dual-power supply servers increase redundancy?
Dual power supplies can improve reliability in your data center. However, these servers are sometimes improperly implemented when server administrators attempt to take maximum advantage of the redundancy made possible by have dual power supplies. In some cases, this actually reduces the power redundancy.
How does a dual power supply work?
How does a dual power supply work? Dual power supply is a specified power supply from one source which have three terminal supply, one is +vcc, second is -vcc and third is ground or common. In single power supply mode there is (2 connection) one vcc and second is Ground connection. For dual power supply 3 secondary terminal transformer is used.
What is a redundant DC power supply?
AC-DC Redundant Power Supplies. Redundancy in a system is the practice of designing in duplicates of critical system components with the intention of increasing system reliability. Usually, these components are connected in parallel and function as a single unit, with one taking over if the other fails.
What are redundant power supplies?
Redundant power supply. Found more commonly in servers and other high-end computers, a redundant power supply contains two (or more) power supply units inside it. Each power supply is capable of powering the entire computer and only one runs at a time.
