In RSTP, a non-root bridge actively sends RSTP BPDUs at the hello time through designated ports without waiting for the root bridge to send RSTP BPDUs. This enables RSTP to quickly detect link failures.
What version of Bpdu is used by RSTP?
RSTP uses type 2, version 2 BPDUs. The original 802.1D STP uses type 0, version 0 BPDUs. However, a switch running RSTP can communicate directly with a switch running the original 802.1D STP.
What is difference between STP and RSTP?
The main difference between Rapid Spanning Tree Protocol (RSTP IEEE 802.1W) and Spanning Tree Protocol (STP IEEE 802.1D) is that Rapid Spanning Tree Protocol (RSTP IEEE 802.1W) assumes the three Spanning Tree Protocol (STP) ports states Listening, Blocking, and Disabled are same (these states do not forward Ethernet …
How does RSTP work?
RSTP works by adding an alternative port and a backup port compared to STP. These ports are allowed to immediately enter the forwarding state rather than passively wait for the network to converge. The alternative port moves to the forwarding state if there is a failure on the designated port for the segment.
What is BPDU packet?
Acronym for bridge protocol data unit. BPDUs are data messages that are exchanged across the switches within an extended LAN that uses a spanning tree protocol topology. BPDU packets contain information on ports, addresses, priorities and costs and ensure that the data ends up where it was intended to go.
What is Bpdu packet?
Is RSTP compatible with rapid Pvst?
Supported Spanning Tree Protocols Arista switches use Multiple Spanning Tree Protocol (MSTP/802.1s) by default. However, they also support Rapid Spanning Tree Protocol (RSTP/802.1w), as well as Rapid Per-VLAN Spanning Tree (Rapid-PVST) for vendor interoperability.
What is RSTP forwarding?
Rapid spanning tree protocol (RSTP) is as its name suggests, a faster transition to a port-forwarding state. Unlike STP, which has five switchport states, RSTP has only three: discarding, learning, and forwarding.
What is BPDU What are the 2 types of BPDUs?
There are two kinds of BPDUs for 802.1D Spanning Tree: Configuration BPDU, sent by root bridges to provide information to all switches. TCN (Topology Change Notification), sent by bridges towards the root bridge to notify changes in the topology, such as port up or port down.
What does a BPDU contain?
A bridge protocol data unit (BPDU) is a data message transmitted across a local area network to detect loops in network topologies. A BPDU contains information regarding ports, switches, port priority and addresses. BPDUs contain the information necessary to configure and maintain spanning tree topology.
What changes have been made to the BPDU format?

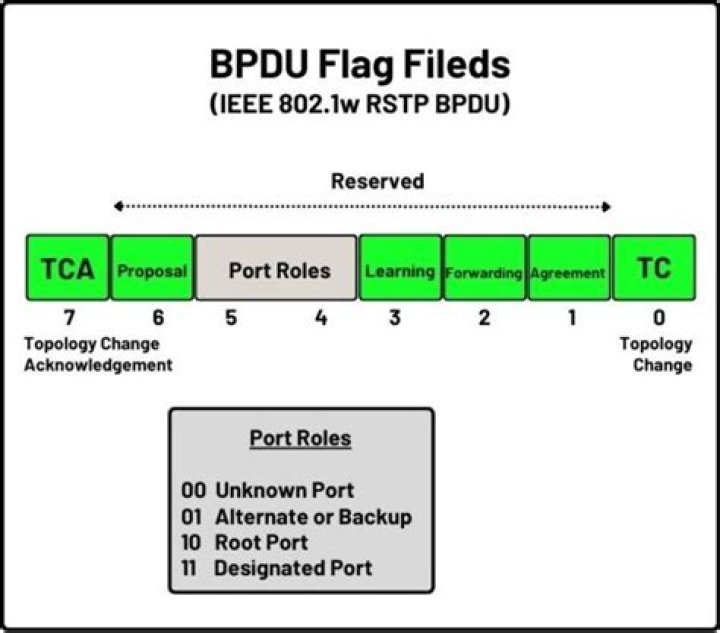

Few changes have been introduced by RSTP to the BPDU format. Only two flags, Topology Change (TC) and TC Acknowledgment (TCA), are defined in 802.1D. However, RSTP now uses all six bits of the flag byte that remain in order to perform:
What is the format of IEEE 802 BPDU?
The format of IEEE 802.1D Bridge Protocol Data Unit (BPDU) is given below. • Protocol ID (2 bytes): Contains the value 0000 for IEEE 802.1D • Version ID (1 byte): Contains the value zero. • BPDU Message Type (1 byte): Configuration or TCN BPDU • Flags (1 byte): The Topology Change (TC) bit signals a topology change.
What are the different types of BPDU in STP?
There are two types of BPDUs in the original STP specification (the Rapid Spanning Tree (RSTP) extension uses a specific RSTP BPDU): Configuration BPDU (CBPDU), used for Spanning Tree computation Topology Change Notification (TCN) BPDU, used to announce changes in the network topology
What is the difference between alternate and backup ports in RSTP?
RSTP introduces these two roles for this purpose. An alternate port receives more useful BPDUs from another bridge and is a port blocked. This is shown in this diagram: A backup port receives more useful BPDUs from the same bridge it is on and is a port blocked.
