Pintle hitches also allow for more movement at the attachment point than ball hitches. The range of movement provided by pintle hitches when attached to the lunette ring makes the hitch ideal for towing on uneven surfaces like off-road terrain.
Are all pintle hitches the same size?
Expert Reply: Pintle hitches are made to fit certain sized Lunette rings. The rings that we carry are only available in 2-1/2″ or 3″ diameter sizes. If you already have a lunette ring measure the inner diameter and make sure the Pintle hitch you choose will fit the ring.
What is a lunette eye?
REESE Lunette Eye is designed to provide excellent towing facility. It is made from a sturdy material offering high durability. This product has been designed and engineered to the highest towing standards.
What is a pintle hook eye?

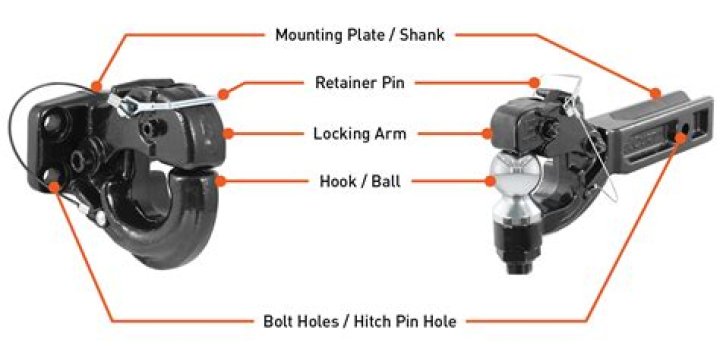

The basic pintle hitch is essentially a hook and loop, with the hook attached to the vehicle and the loop mounted on the trailer. This heavy-duty pintle hook features a gross trailer weight capacity of 60,000 lbs.
Can a dually pull a backhoe?
As long as you don’t gross over 26,001 lbs you are fine. You said if ” dually weighs in at 9,000 lbs and you are pulling a trailer that weighs 17,000 lbs”. It doesn’t matter what they weigh since it goes by GVWR.
What is the maximum amount of allowed wear on pintle hook and horns?
Replace pintle hook when horn wear exceeds 1/8 of an inch (0.125 inches) from the original surface profile. NOTE: Contact your pintle hook manufacturer if a pintle hook guage is not available. 2. Check the pintle hook for damage.
How much weight can a pintle hook hold?
With a trailer ball capacity of 20,000 lbs., it offers a solid complement to any class 5 trailer hitch. The pintle hook fits any lunette ring with a 2-1/2″ or 3″ inside eye diameter, while the trailer ball can be coupled to any 2-5/16″ coupler. CURT SecureLatch ball and pintle combination is rated for 13,000 pounds gross trailer weight.
What are Holland rigid mount pintle hooks?
HOLLAND Rigid Mount pintle hooks are air cushioned for Heavy Duty applications. All HOLLAND pintle hooks are forged from quality alloy steel, tested for safety, heat treated for durability, and are offered for specific capacities and applications. EFFECTIVE: February 1st, 2020 – No new orders will be accepted.
What is a pintle hitch receiver Mount?
A pintle hitch receiver mount has a mounting plate and a square shank receiver tube that allows the hitch to be installed in a standard receiver hitch on a pickup truck. Most of these will allow the height to be adjusted when the hitch is bolted to the receiver mount and some are available that do not require the pintle to be unbolted.
Can You tow a ball coupler trailer with a pintle hook?
If you still can’t decide or you need to tow both ball coupler trailers and pintle ring trailers you can use a pintle ball hitch, or a combination hitch. A combination pintle hitch is a pintle hook with a ball on the end that can couple with either type of trailer.
