The difference between the two friction factors is that the value of the Darcy friction factor is 4 times that of the Fanning friction factor. In all other aspects, they are identical, and by applying the conversion factor of 4 the friction factors may be used interchangeably.
What is the formula of Fanning friction factor?
f = Friction factor (4 × f ′ in Fanning equation) ρ = Fluid density, lb/cu. ft. d = Tube internal diameter, in.
How do you calculate Darcy friction factor?
The Darcy friction factor is four times the Fanning friction factor, fF, i.e., fD = 4fF. For fully developed turbulent flow regime in smooth and rough pipes, the Colebrook [5] equation or the Chen [6] equation can be used.
What does Fanning friction factor represent?
DEFINITION: The coefficient of skin friction or the Fanning friction factor is the ratio of the total normalized (i.e., dimensionless) shear stress acting on the surface of a solid.
Does Fanning friction factor have units?
The Fanning friction factor, named after John Thomas Fanning, is a dimensionless number used as a local parameter in continuum mechanics calculations.
Why do we calculate friction factor?
The Darcy Equation is a theoretical equation that predicts the frictional energy loss in a pipe based on the velocity of the fluid and the resistance due to friction. It is used almost exclusively to calculate head loss due to friction in turbulent flow.
How do you use friction factor?
How to calculate friction factor for turbulent flow?
- Calculate the Reynold’s number for the flow (using ρ × V × D / μ).
- Check the relative roughness (k/D) to be under 0.01.
- Use the Reynold’s number, roughness in the Moody formula – f = 0.0055 × ( 1 + (2×104 × k/D + 106/Re)1/3)
What is the difference between Fanning and Darcy Weisbach factor?
Friction Factor Calculations. The Darcy-Weisbach equation, for calculating the friction loss in a pipe, uses a dimensionless value known as the friction factor (also known as the Darcy-Weisbach friction factor or the Moody friction factor) and it is four times larger than the Fanning friction factor.
The Fanning friction factor, named after John Thomas Fanning, is a dimensionless number, that is one-fourth of the Darcy friction factor, so attention must be paid to note which one of these is used as the friction factor. This the only difference between these two factors.

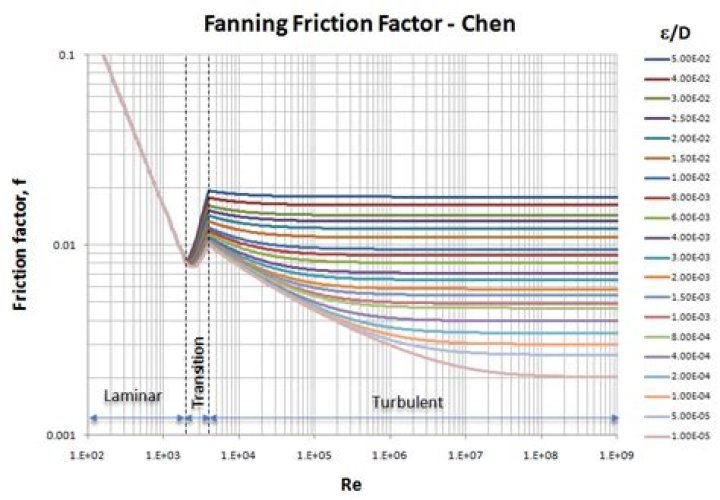

What is the relationship between Fanning friction factor and Reynolds number?
For the turbulent flow regime, the relationship between the Fanning friction factor and the Reynolds number is more complex and is governed by the Colebrook equation which is implicit in f {\\displaystyle f} : Various explicit approximations of the related Darcy friction factor have been developed for turbulent flow.
What are the different types of friction factors?
There are two common friction factors in use, the Darcy and Fanning friction factors. The Darcy friction factor is also known as the Darcy–Weisbach friction factor or the Moody friction factor.
