The tip speed is simply the distance that any selected point on the peripheral of the impeller travels in a set time. In other words the “speed” of that point. To calculate tip speed you simply multiply the diameter of the impeller by pi (3.14159) which gives you the circumference of the impeller at the outermost tip.
Does impeller affect speed?
The speed and diameter of the impeller determines the head or pressure that the pump can generate. The rotational speed and height of the impeller blades determines the flow that the pump can accommodate [4, 5].
What is the most efficient impeller design?

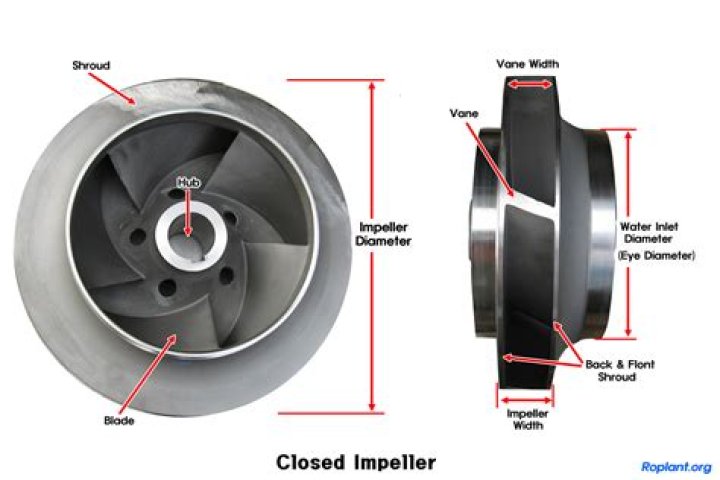

Most often, applications call for the most efficient flow of liquid possible, which is a job for the closed impellers. These are the strongest design, allowing them to move higher volumes of water faster.
How important is blade tip speed?
Everybody quotes blade tip speed, this is not nearly as important as spindle speed. To maintain the perfect tip speed for cleanly cut grass, these shorter blade beams spin at a higher rate allowing the blade to take a smaller bite (clip) of grass each rotation, ultimately increasing the number of cuts per forward yard.
Why is tip speed ratio important?
Why is This Important??? Knowing the tip speed ratio of your turbine will help you maximize the power output and efficiency of your wind turbine. Remember that if your rotor spins too slowly, a lot of wind will pass through the gaps between the blades rather than giving energy to your turbine.
How does impeller size affect efficiency?
Diameter size affected impeller characteristics in both steady and unsteady states. Subsequently, the differences in performance, hydraulic loss, pressure pulsation, and radial force of the impellers were evaluated. In the performance test, the head and efficiency of the pump decreased as impeller diameter was reduced.
What is compressor tip speed?
A general rule of thumb is that impeller tip speed should normally range between 650 and 900 ft/sec (198 and 274 m/sec) for fully enclosed impeller designs. Impeller tip speed is related to both mechanical and aerodynamic limitations associated with compressor design.
What type of blade gives maximum efficiency?
Answer: The efficiency of a centrifugal pump will be maximum when the blades are bent backward.
What mower has the fastest blade tip speed?
Runningblade
The Runningblade recently set the world’s record for the fastest lawnmower at over 87 mph.
What is the maximum impeller tip speed for dirty water?
The maximum impeller tip speed is based on tests that were done by the Hydraulic Institute www. pumps.org. You can find more information in the Hydraulic Institute’s Centrifugal Pumps for Design and Application ANSI/HI 1.3 standard. The recommendation on the maximum tip speed for dirty water: — 130 ft/s
What is the maximum tip speed for a centrifugal pump?
You can find more information in the Hydraulic Institute’s Centrifugal Pumps for Design and Application ANSI/HI 1.3 standard. The recommendation on the maximum tip speed for dirty water: — 130 ft/s. Higher tip speeds are likely to cause excessive erosion.
What is the speed of a gas impeller?
This is based on an assumed impeller flow coefficient of 0.5 and a nominal impeller tip speed of 800 fps (244 mps). The actual head per stage varies between manufacturers and individual impeller designs, ranging from 9000 to 12,000 feet (2743–3658 m) for 28–30 molecular weight gas at normal temperatures.
What is the tip speed of a slurry pump?
In addition slurry pumps are oftern vee belt driven so tip speed again is variable. Sewage could contain gravel and other wearing solids. Most authorities specify pumps should be 4 or 6 pole speed. This results in a larger impeller but lower tip speed.
