A three-state, or Tri-State™, output has three electrical states: One, zero, and “Hi-Z,” or “open.” The hi-Z state is a high-impedance state in which the output is disconnected, leaving the signal open, to be driven by another device (or to be pulled up or down by a resistor provided to prevent an undefined state).
What is the use of tri-state?
The Tri-state Buffer is used in many electronic and microprocessor circuits as they allow multiple logic devices to be connected to the same wire or bus without damage or loss of data. For example, suppose we have a data line or data bus with some memory, peripherals, I/O or a CPU connected to it.
What is tri-state TTL?
Tri-state gates have additional circuitry via which the gate outputs can be enabled or disabled. This is very useful in digital systems where devices communicate via common wires called busses. Only one device can talk at a time; the others are disabled. Figure 9 shows a tri-state TTL inverter.
How does a tri-state work?

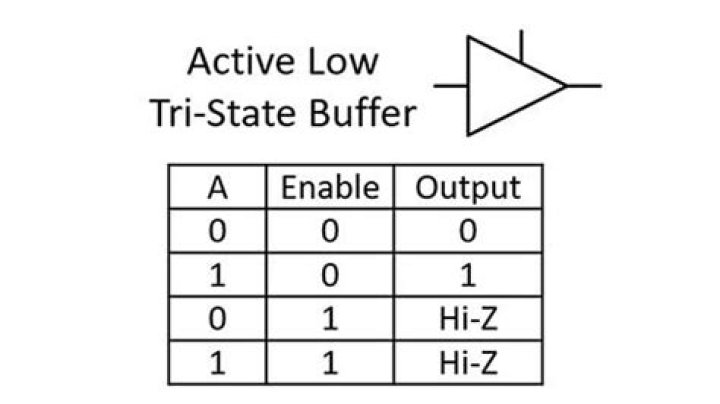

A tri-state buffer is similar to a buffer, but it adds an additional “enable” input that controls whether the primary input is passed to its output or not. If the “enable” input signal is false, the tri-state buffer passes a high impedance (or hi-Z) signal, which effectively disconnects its output from the circuit.
What is meant by tri-state output?
tri-state output (three-state output) An electronic output stage consisting of a logic gate, commonly an inverter or buffer, that exhibits three possible logic states, namely logic 1, logic 0, and an inactive (high-impedance or open-circuit) state.
Which are the Tri States?
The most common tri-state area is the greater New York City area, made up of New York, New Jersey, and Connecticut.
Which port is tri-state?
In digital electronics three-state, tri-state, or 3-state logic allows an output port to assume a high impedance state, effectively removing the output from the circuit, in addition to the 0 and 1 logic levels.
Is tri-state floating?
3 Answers. Tri-state is essentially 3 different states as you have seen. Instead of calling it ON and OFF, think of it as IN and OUT instead. The third state is not floating, it is in a high impedance state, which is essentially disconnecting it from the circuit.
What is tri-state pin?
In digital electronics three-state, tri-state, or 3-state logic allows an output or input pin/pad to assume a high impedance state, effectively removing the output from the circuit, in addition to the 0 and 1 logic levels. The term tri-stateshould not be confused with ternary logic (3-value logic).
How decoder is used in three-state buffer?
To form a single bus line, all the outputs of the 4 buffers are connected together. The control input will now decide which of the 4 normal inputs will communicate with the bus line. The decoder is used to ensure that only one control input is active at a time. The diagram of a 3-state buffer can be seen below.
What is a tri-state buffer explain?
A tri-state buffer is a logic inverter or a non-inverting buffer with a tri-state output stage. When the enable line is not activated the buffer output stage has a high output impedance (i.e., the Z state, as described above in section 10.15) and transmission of data is prevented.
